TOPIC: How To: Install Windows 10 [Video Guide]

How To: Install Windows 10 [Video Guide] 2 years 7 months ago #320

  • moisesmcardona
  • moisesmcardona's Avatar
  • OFFLINE
  • New Member
  • Posts: 5
  • Thank you received: 3
  • Karma: 1
Hi everyone,
I've made some instructional videos on how to successfully install Windows 10 and its drivers to your JaguarBoard. Please note that before installing Windows 10, you must have flashed the Windows BIOS in your board.

The following video will tell you how to flash the Windows BIOS once you have downloaded it and copied to a flash drive:


Once you have flashed the Windows BIOS, you can proceed to install Windows 10 :) Please note, the video is long, however, the first 20 minutes approximately is where I install Windows 10. The next minutes are about installing the drivers and installing the Windows Updates (which is why the video is long. You may skip the Windows Update part of the video).


I hope the videos are useful to you and I hope you enjoy using your JaguarBoard as much as I do! ;)

P.S. If you have not yet got your JaguarBoard or haven't decided on purchasing it, here is an unboxing video for you :cheer:
Last Edit: 2 years 7 months ago by moisesmcardona.
The administrator has disabled public write access.
The following user(s) said Thank You: nunyafb, tim, Josephtuche

How To: Install Windows 10 [Video Guide] 2 years 7 months ago #504

  • jumpwire
  • jumpwire's Avatar
  • OFFLINE
  • New Member
  • Posts: 17
  • Karma: 0
Thanks for posting this. The link for the new Windows firmware is no longer working. Do you have any idea what the new working link is?
The administrator has disabled public write access.

How To: Install Windows 10 [Video Guide] 2 years 7 months ago #505

  • tim
  • tim's Avatar
  • OFFLINE
  • Moderator
  • Posts: 226
  • Thank you received: 29
  • Karma: 4
www.jaguarboard.org/downloads/UEFI.zip

Pls take a look on our website, you will find everything.
The administrator has disabled public write access.
The following user(s) said Thank You: jumpwire, Josephtuche

How To: Install Windows 10 [Video Guide] 2 years 5 months ago #685

  • CCAdmin
  • CCAdmin's Avatar
  • OFFLINE
  • New Member
  • Posts: 7
  • Thank you received: 1
  • Karma: 0
Thanks for the video explaining everything. I have some additional information to add:

-You do not need a wifi adapter, initially, to do the install. I tethered my android tablet via USB to my jaguarboard and I was able to access the internet. Just FYI.

-After installing all the drivers, my display was still 800x600. To fix it I forced the Windows Device Manager to install the drivers by going to: Device Manager--> Right-click on Microsoft Basic Display Adapter-->Update Driver-->Browse for my software-->Navigate to the folder where I exported the Drivers.zip file.

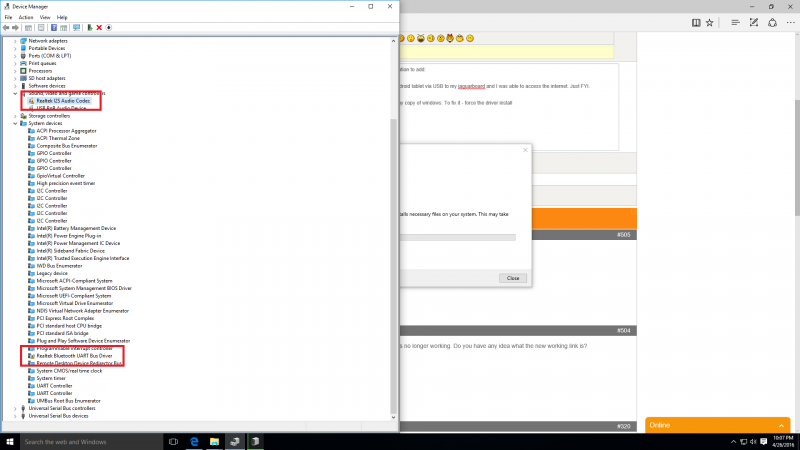

-Some drivers still fail after using the updated drivers for jaguarboard. Any idea how to resolve these? I've attached a picture

Again, thanks for the easy to follow video; it really helped!
Attachments:
The administrator has disabled public write access.
The following user(s) said Thank You: Josephtuche

How To: Install Windows 10 [Video Guide] 2 years 5 months ago #686

  • tim
  • tim's Avatar
  • OFFLINE
  • Moderator
  • Posts: 226
  • Thank you received: 29
  • Karma: 4
First one is for hdmi audio, second one is for bluetooth, we do not support it in current version, so they are not working.
We will support both in next version, thanks for your support!
The administrator has disabled public write access.
The following user(s) said Thank You: Josephtuche

How To: Install Windows 10 [Video Guide] 1 year 2 months ago #2247

  • jackzack
  • jackzack's Avatar
  • OFFLINE
  • New Member
  • Posts: 3
  • Thank you received: 1
  • Karma: 0
Hy guys i am having problem with my windows 10 installation. The setup starts up but it wont show the Emmc flash drive or memory
if there is any fix to it any guidance will be appreciated ! (English is not my first language)
Attachments:
The administrator has disabled public write access.
The following user(s) said Thank You: Josephtuche
