TOPIC: Aluminum Jaguar Case Schematics

Aluminum Jaguar Case Schematics 2 years 2 months ago #842

  • jgillespie
  • jgillespie's Avatar
  • OFFLINE
  • Junior Member
  • Posts: 27
  • Thank you received: 5
  • Karma: 1
Looking for the schematics of the new Aluminum JaguarBoard Case sold in the Accessories area so I can make a VESA mount that screws into the empty holes on the outside of the case.
The administrator has disabled public write access.

Aluminum Jaguar Case Schematics 2 years 2 months ago #850

  • jgillespie
  • jgillespie's Avatar
  • OFFLINE
  • Junior Member
  • Posts: 27
  • Thank you received: 5
  • Karma: 1
We measured it ourselves and were able to get the numbers we needed. If anyone else is in need of them to attach the JaguardBoard Case to a VESA monitor just shoot me a PM.
The administrator has disabled public write access.

Aluminum Jaguar Case Schematics 2 years 2 months ago #851

  • tim
  • tim's Avatar
  • OFFLINE
  • Moderator
  • Posts: 226
  • Thank you received: 29
  • Karma: 4

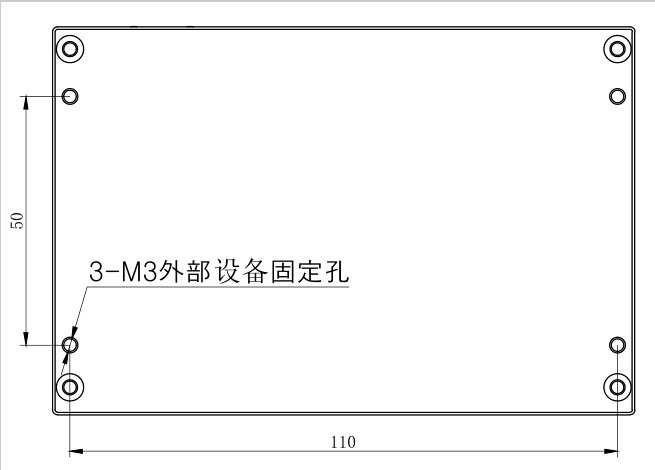

SO Sorry, Sir! I missed your last post. Here is the picture you need:

The administrator has disabled public write access.

Aluminum Jaguar Case Schematics 1 year 6 months ago #2035

  • sysmocom_hw
  • sysmocom_hw's Avatar
  • OFFLINE
  • New Member
  • Posts: 4
  • Thank you received: 1
  • Karma: 0
By the way, the quality of the aluminium enclosure (which also acts as heat sink) is excellent. The mounting holes at the bottom are very thoughtful and much appreciated!
